Other applications

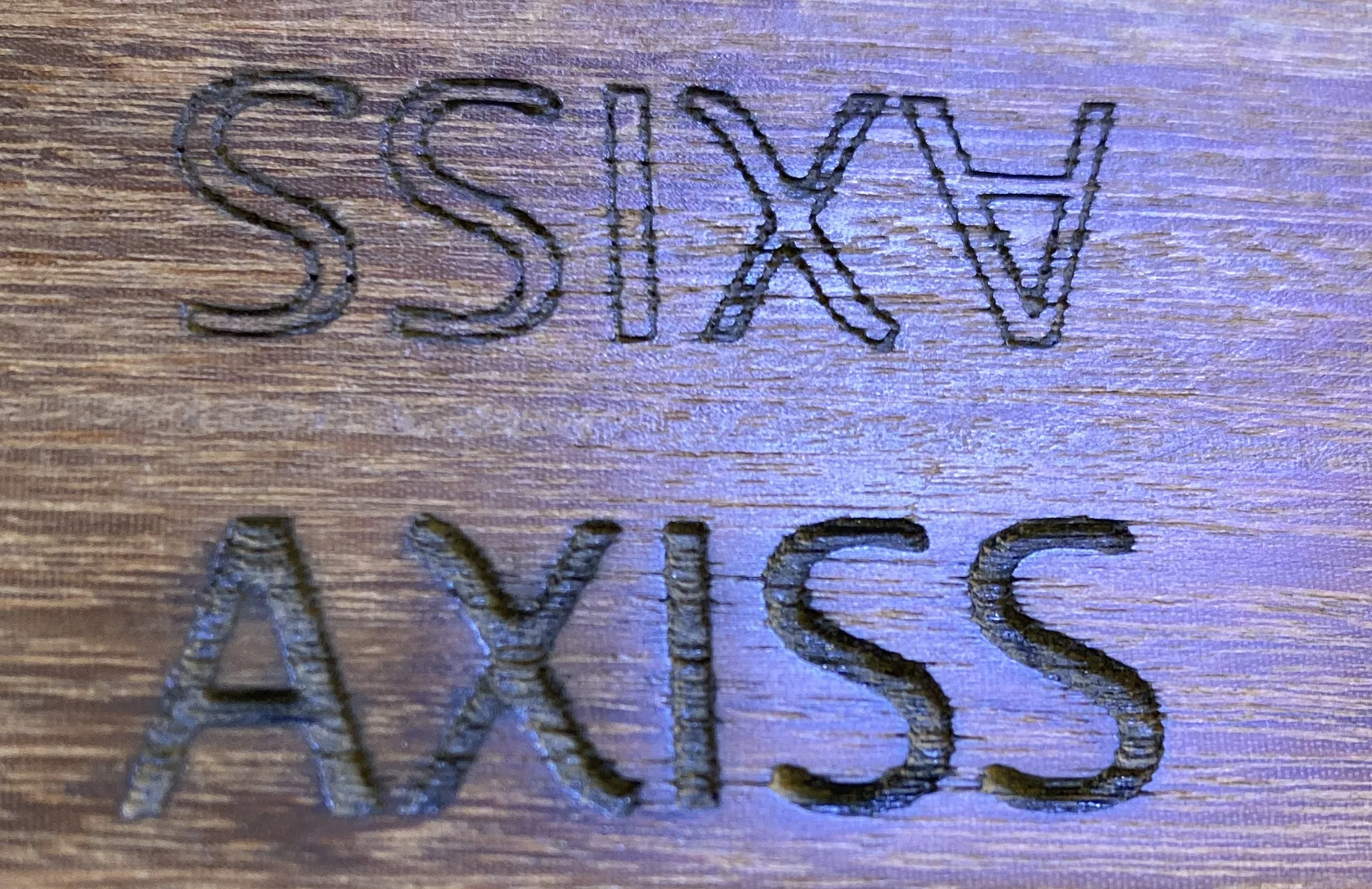

Pyrography on wood using fiber laser. The engraving simulates traditional fire engraving.

High contrast and high legibility marking due to the removal of the protective varnish layer of the PCB, without affecting the copper substrate.

Engraving of a tiny die with a pulsed laser with high peak power and high beam quality. The etching, with a depth of 0.6 mm, was carried out by executing machining iterations with different settings of the energy input.

Polished silver engraving using ultra-short pulses of high energy density that generate a high contrast imprint with no material removal. Highly legible marks with a very discreet appearance consisting of 12 µm diameter dots are obtained.

Perforación de una placa de Inconel de 1 mm de espesor con gran precisión, empleando un láser de alta potencia de pico y pulsos de duración de femtosegundos. The system used makes it possible to adjust the verticality of the walls of the boreholes obtained.

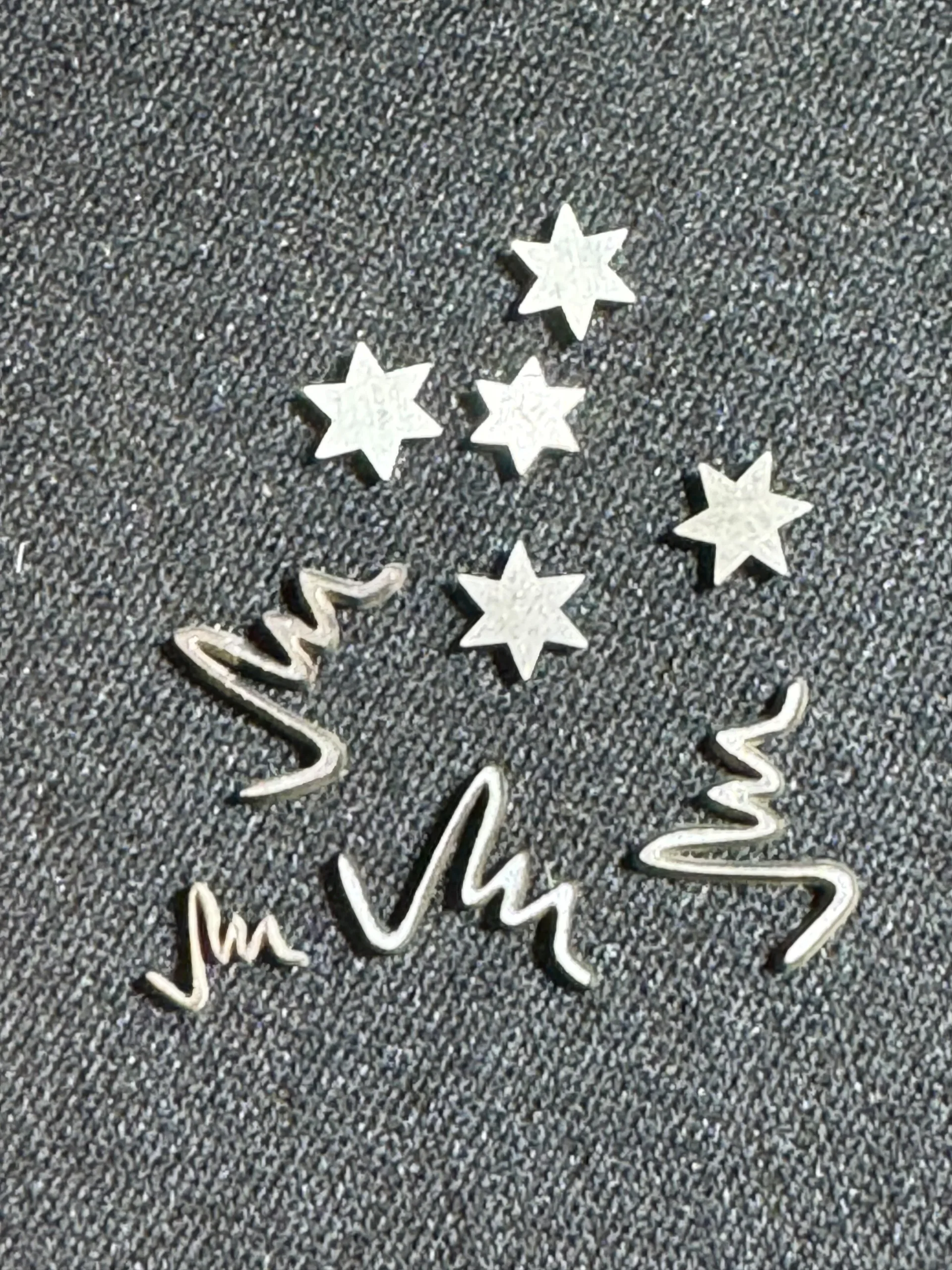

Precision cutting of 1 mm thick silver using a fiber laser engraving system. Cutting is performed by multiple iterative layers.

Seam welding without weld material on stainless steel tubes with a pulsed fiber laser.

Transparency welding of steel parts using a pulsed fiber laser, obtaining a high tensile strength joint.

Pin-transparent spot welding of a stainless steel sheet by means of a pulsed fibre laser, creating a highly tensile metal joint.

Welding of brass and stainless steel using a pulsed laser, generating a very robust non-alloyed metallurgical joint.

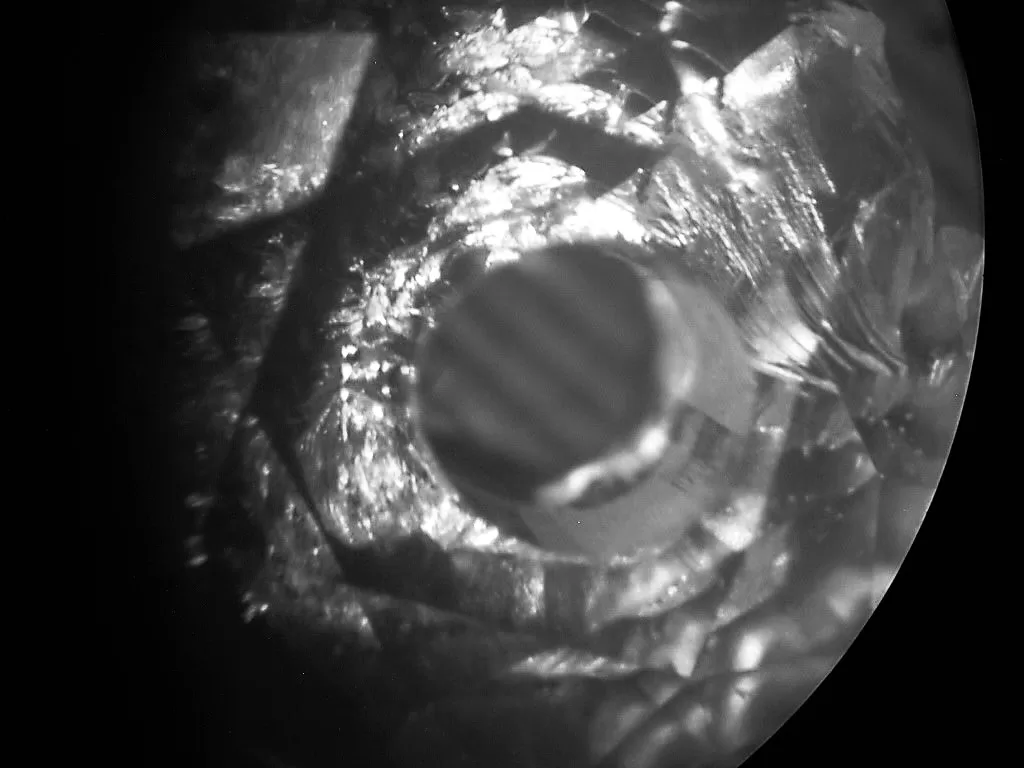

Drilling of a diamond by selective ablation using a pulsed solid-state laser with high beam quality and high peak power, which facilitates crack-free machining.
