Q-Switch Fiber Laser Marking System, MOPA Fiber or CO2
Power from 20 to 100 Watts for fiber laser and from 20 to 50 Watts for CO2
Scanlab and SinoGalvo galvanometric heads, among others
Optics with flat marking field of 70mm x 70mm, 110mm x 110mm, 175mm x 175mm, depending on the built-in lenses
WYS/WYG marking software for Windows 10 type U-Mark, EZCAD2, EZCAD3

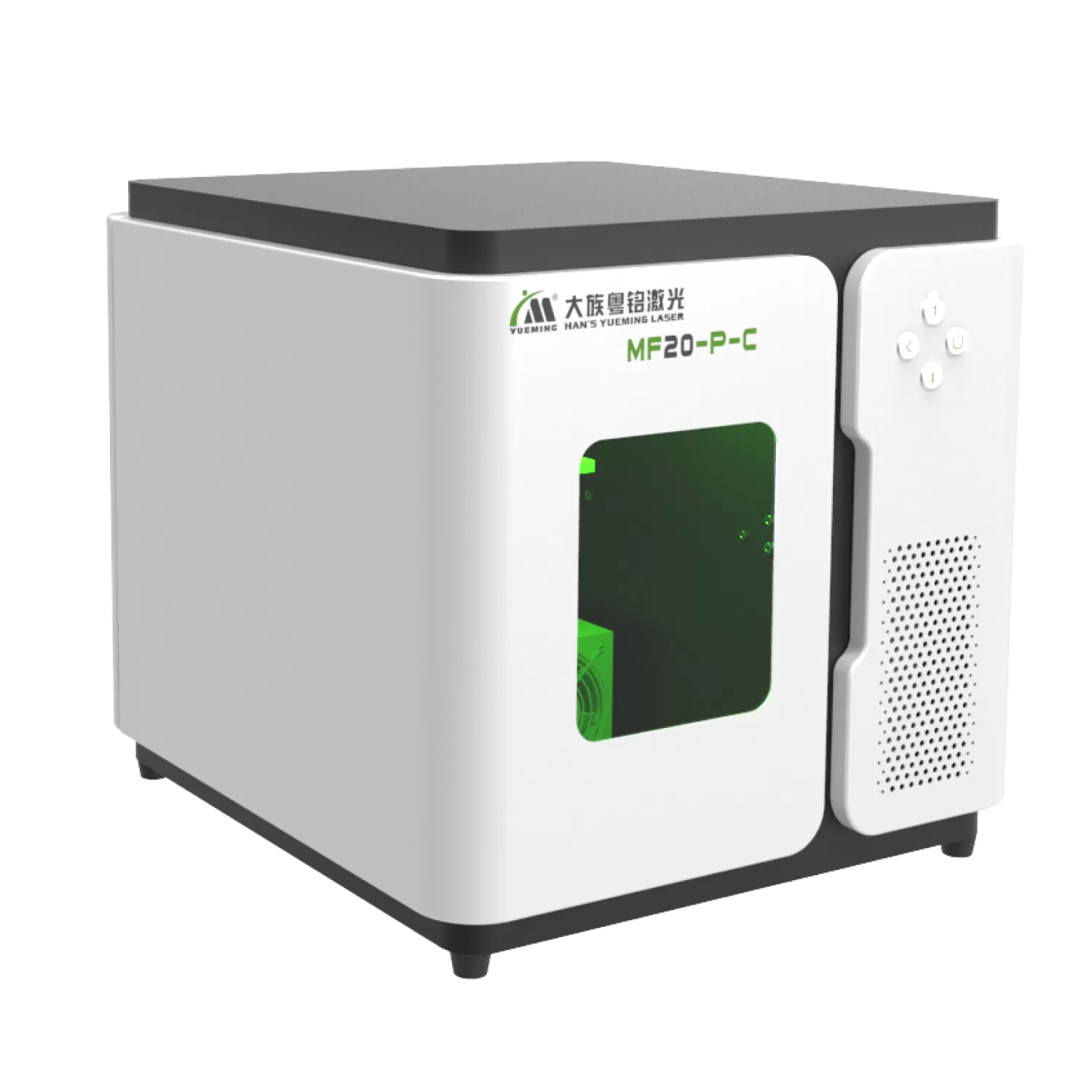

Cabin with security door that integrates the laser and control elements. Dimensions 560mm × 600mm × 540mm
They are equipment designed to be operated as independent marking units that incorporate a safety cabin with a work table and electromechanical drive adjustment of the laser head height.
Depending on the characteristics of the materials to be marked, the type of laser source with the most appropriate wavelength (IR at 1,064/10,640 nm) is selected to obtain the best contrast results or other desired effects. Common integrated laser sources from IPG and JPT.
They can mark the data that is programmed into them and that comes from the network units to which they are linked. The cabin door incorporates a safety lock to prevent the emission of laser light if it is opened while the laser is emitting.
The equipment may include programmable turntables (A).
The marking software is determined based on the type of application to be carried out, with the usual use of U-Mark Software from Han’s Laser or EZCAD2/3 from BJJCZ; Both are companies from China with which we have maintained close collaboration for years.
You can contact us and get information by filling out the contact form for personalized attention.
