Welding heads

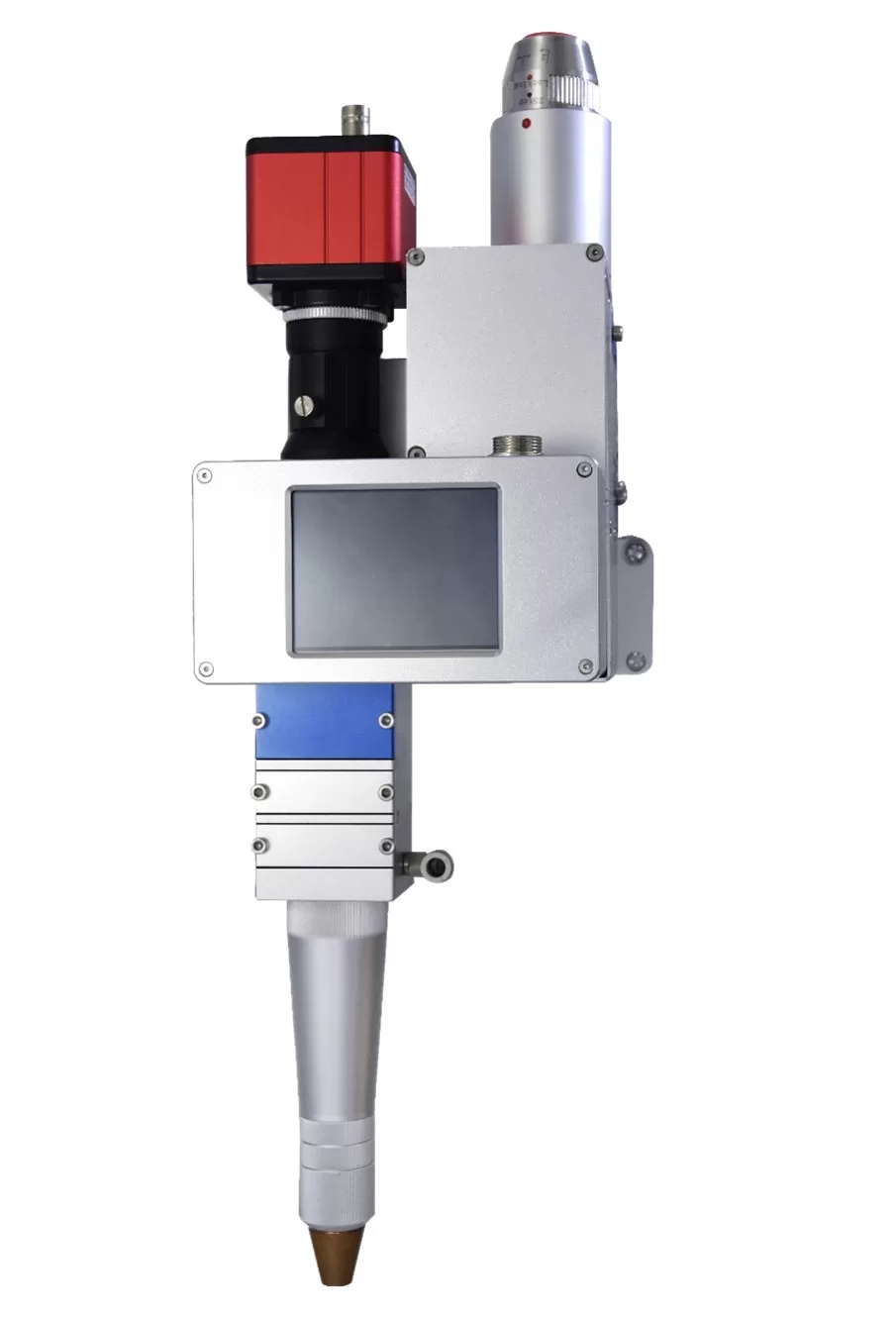

Orbital welding heads
- Maximum power 6000W
- Focusing focal length F75mm/F125mm/F200mm/F250mm/F300mm
- Weight 3.4KG

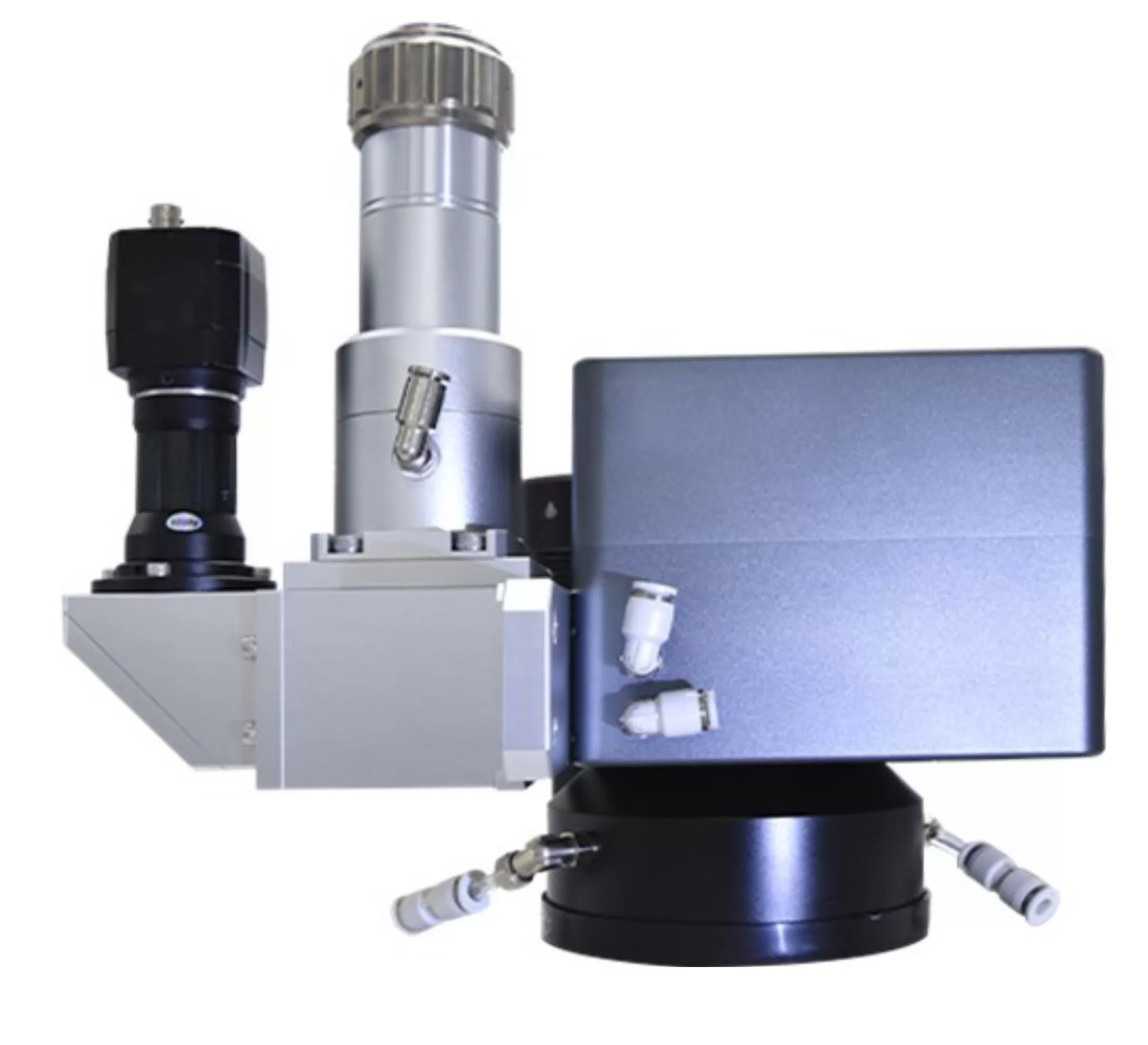

Galvanometric welding heads
- Maximum power 4000W
- Scanning range 70 x 70mm / 110x 110 mm / 170 x 170 mm
- Weight 5.7KG

The orbital welding head offers significant advantages in applications high power welding on high reflectivity materials; it’s a economical and very efficient welding head. The head uses oscillation mirrors in both axes of the X and Y plane , driven by Synchronized motors with several programmable oscillation modes. The Oscillating welding allows parts to be welded with parameters of optimized variable processing, which can improve significantly the quality of the welds. The internal structure of welding head is completely sealed to prevent dust contamination of the optical parts. Equipped with an air curtain, it reduces dirt on the mirrors due to smoke and splash residue generated during welding. The mirror protection glass uses a drawer structure, making it easy to replace and clean.
The compact galvanometric head design is most efficient in medium to thick plate welding applications. Facilitates the generation of welds at high speed with precision; which gives it advantages in multi-point welding. The collimation optical components, deflection mirrors and flat-field focusing optics are cooled by a water cooling system, ensuring long-term stable and efficient work of the welding head. The head incorporates oscillation mirrors on the The internal structure of the welding head is completely sealed to prevent contamination and dirt. The internal structure of the welding head is completely sealed to prevent contamination and dirt.
